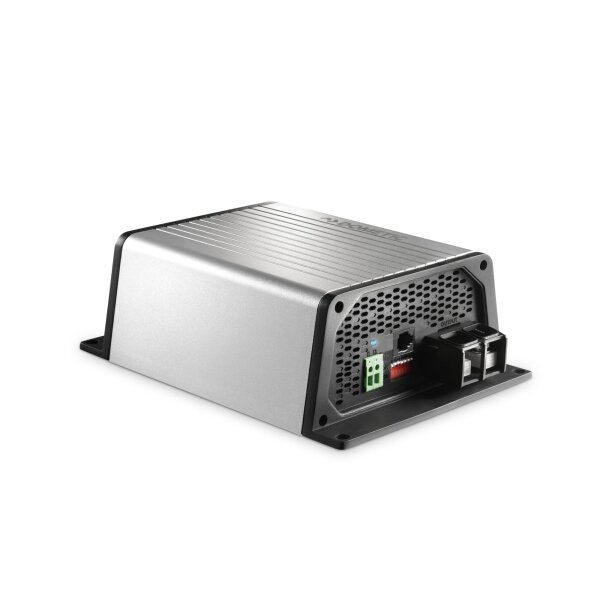

Dometic PerfectPower DCC 1212-10 – 12 V / 10 A DC/DC Battery Charger

Dometic PerfectPower DCC 1212-10 – 12 V / 10 A DC/DC Battery Charger

The Dometic PerfectPower DCC 1212-10 is a 12 V to 12 V DC/DC battery charger with a 10 A charging current for reliable charging of the leisure battery while driving. Ideal for motorhomes, campervans and EURO 6 vehicles with smart alternators. Features IU0U charging technology, galvanic isolation and a stable output voltage.

199,00 €

Available
Delivery time: 2 - 6 Workdays (DE - int. shipments may differ)

Our payment methods:

SKU: 420-00180
GTIN: 4015704266436
HAN: 9600003753
Manufacturers: Dometic Germany GmbH

Dometic PerfectPower DCC 1212-10 – 12 V / 10 A DC/DC Battery Charger

12 V DC/DC battery charger for motorhomes, campervans and boats

The Dometic PerfectPower DCC 1212-10 charges the 12 V leisure battery while driving with a charging current of 10 A. The DC/DC battery charger converts the voltage supplied by the 12 V starter battery into a stable, controlled charging voltage, ensuring reliable charging of the leisure battery while the vehicle is on the road.

The 12 V to 12 V DC/DC battery charger is particularly suitable for motorhomes, campervans and other vehicles where the leisure battery needs to be charged reliably from the alternator.

Ideal for EURO 6 vehicles with smart alternators

Especially in modern EURO 6 vehicles with smart alternators, the vehicle electrical system voltage can fluctuate while driving. The Dometic PerfectPower DCC 1212-10 converts this fluctuating input into a stable output voltage, enabling controlled charging of the leisure battery.

Thanks to the galvanic isolation between input and output voltage, the output side is electrically isolated from the input circuit. The stable output voltage also makes the charger suitable for reliably powering sensitive electrical equipment.

IU0U charging technology for battery-friendly charging

The IU0U charging technology provides a charging process adapted to the selected battery type. External DIP switches allow the DC/DC battery charger to be configured without opening the housing.

With an optional temperature sensor, temperature-compensated charging is also possible. This allows the charging voltage to be adjusted according to the battery temperature.

Dometic PerfectPower DCC 1212-10 at a glance

12 V to 12 V DC/DC battery charger
10 A charging current
for leisure and service batteries in motorhomes, campervans and boats
suitable for EURO 6 vehicles with smart alternators
IU0U charging technology
adjustment to different battery types via external DIP switches
galvanic isolation between input and output voltage
stable output voltage from 13.2 to 14.7 V
temperature-compensated charging with optional temperature sensor
also suitable for providing a stable power supply to sensitive electrical equipment

Product safety information

Manufacturer information:

Dometic Germany GmbH
Hollefeldstr. 63
Nordrhein-Westfalen
Emsdetten, Deutschland, 48282
info@dometic-waeco.de
https://www.dometic.com/

Item information	Value
Shipping weight:	1,80 kg
Item weight:	1,30 kg

Conversion:	12 V → 12 V
Rated input voltage:	12 V
Input voltage range:	8 V to 16 V
Charging current:	10 A
Charging voltage:	13.2 V to 14.7 V
Power:	120 W
Output voltage ripple at rated current:	<50 mVrms
Efficiency:	up to 90%
No-load current consumption:	<0.4 A
Operating ambient temperature:	-20 °C to +50 °C
Ambient humidity:	≤95%, non-condensing
Dimensions:	153 × 73 × 180 mm (width × depth × height)
Weight:	1.25 kg

Protection features

Input:	Overvoltage, undervoltage, reverse polarity protection (internal fuse)
Undervoltage shutdown:	8 V
Undervoltage restart:	10 V
Overvoltage shutdown:	16 V
Overvoltage restart:	15.5 V
Temperature protection:	Shutdown
Short-circuit protection:	Yes, Ipk
