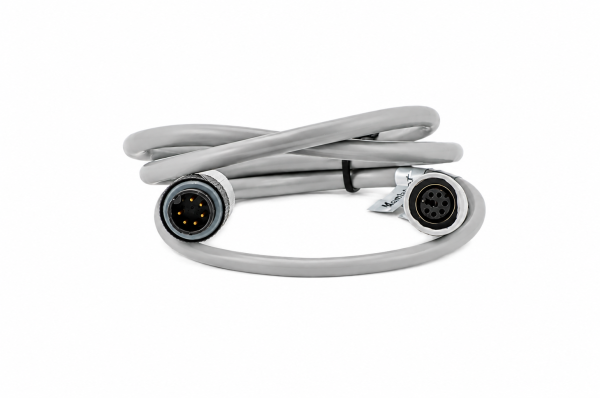

Dometic PerfectView RV-ADAPT 3 – Adapter Cable for Different Camera Connectors
The Dometic PerfectView RV-ADAPT 3 adapter cable is designed to connect compatible reversing cameras and system cables with different 6-pin connectors. It allows a connection between a smaller mini-DIN connector and a larger standard DIN connector, provided the components involved are technically compatible.
The adapter is particularly useful when upgrading older Dometic reversing camera systems whose existing camera cables are to remain in use. However, different connector types may also be found on newer camera models, making the adapter relevant for suitable retrofit installations.
Using a suitable adapter cable may eliminate the need to completely replace a system cable that has already been routed through the vehicle.
Features and Benefits
- Genuine Dometic PerfectView RV-ADAPT 3 adapter cable
- For connecting compatible reversing cameras and system cables with different 6-pin connectors
- For suitable mini-DIN and standard DIN connections
- Practical when upgrading older Dometic reversing camera systems
- Also suitable for compatible newer camera and system cable combinations
- Allows existing camera cables to be reused where technically suitable
- May eliminate the need for time-consuming installation of new cables in the vehicle
Good to Know!
Important information about connectors: Dometic uses different 6-pin connectors for its reversing cameras. In addition to larger standard DIN connectors with a diameter of approximately 13 mm, smaller mini-DIN connectors with a diameter of approximately 7 mm are also used.
As Dometic does not offer suitable system cables for every camera connector type, an appropriate adapter cable may be required when connecting a camera with a mini-DIN connector to an existing or newly installed system cable.
The Dometic PerfectView RV-ADAPT 3 allows different connector types to be connected where the components are compatible. It can therefore be a practical solution, particularly when retrofitting or upgrading a reversing camera system.
Please note: A physical connection alone does not guarantee correct operation. Before ordering, check the existing connectors, pin assignments and technical compatibility between the camera, system cable and monitor. The adapter is not a universal video signal converter.
Product safety information
Manufacturer information:
Dometic Germany GmbH
Hollefeldstr. 63
Nordrhein-Westfalen
Emsdetten, Deutschland, 48282
info@dometic-waeco.de
https://www.dometic.com/
| Item information |
Value |
| Shipping weight: |
0,40 kg
|
| Item weight: |
0,20 kg
|
