Dometic PerfectView VT 150DIG – Digital Wireless Transmission for Reversing Camera Systems
The Dometic PerfectView VT 150DIG is a digital wireless link for transmitting video and audio signals between a compatible PerfectView reversing camera and a monitor. It allows a reversing camera system to be installed without running a continuous video cable through the vehicle.

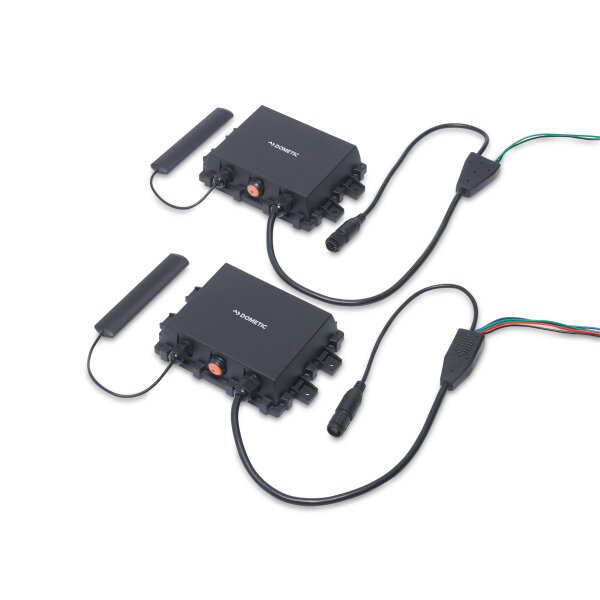

The system consists of a transmitter module installed near the camera and a receiver module connected to the monitor. Digital transmission takes place in the 2.4 GHz frequency band and provides a range of up to 120 metres under favourable open-field conditions.
Features and Benefits
- Digital wireless link for compatible Dometic PerfectView reversing camera systems
- Wireless transmission of video and audio signals between camera and monitor
- No continuous video cable needs to be routed through the vehicle
- Digital signal transmission in the 2.4 GHz frequency band
- Range of up to 120 m under open-field conditions
- Low transmission delay of less than 120 ms
- Video transmission at up to 30 frames per second
- Simultaneous operation of up to six wireless links
- Designed for installation inside or outside the vehicle
- Transmitter and receiver modules factory-paired
How Does the Digital Wireless Link Work?
The transmitter module is installed near the reversing camera and connected to it. It digitally transmits the camera image and any available audio signals wirelessly to the receiver module connected to the monitor.
The transmitter module is powered by the vehicle's electrical system. The receiver module receives its power through the connected monitor. A completely wireless installation is therefore not possible, but the need to route a continuous video cable between the camera and monitor is eliminated.
Installation and Setup
Both modules can be installed inside or outside the vehicle. For a reliable wireless connection, there should be as few obstacles as possible between the transmitter and receiver. Metal vehicle components in particular may interfere with signal transmission.
We recommend temporarily positioning the modules at their intended installation locations and checking the transmission quality before securing them permanently. Final installation should only be carried out once a stable video signal has been confirmed.
The modules are already paired at the factory. If necessary, the connection can be re-established using the integrated pairing buttons. Installation and electrical connections must be carried out in accordance with the supplied Dometic instructions.
Scope of Delivery
- 1 × transmitter module
- 1 × receiver module
- 2 × removable antennas
- Mounting hardware
- Installation and operating instructions
Good to Know!
Not a completely wireless reversing camera: The VT 150DIG replaces the video cable between the camera and monitor with a digital wireless link. The camera, transmitter module, receiver module and monitor still require their designated electrical connections.
Range: The specified 120 m range applies under open-field conditions. Inside a vehicle, metal components and other obstacles may reduce the actual wireless range.
Cameras with a motorised shutter: The Dometic instructions describe different connection options for the transmitter module. Cameras with a motorised shutter cannot be used if the transmitter is powered exclusively via the reversing light.
Compatibility: The VT 150DIG is designed for Dometic PerfectView reversing camera systems. Before ordering, compatibility between the existing camera, monitor and the wireless modules' connections must be checked.
Safety information: Digital transmission introduces a slight delay in the camera image. If video transmission is disrupted, particularly if a yellow warning triangle appears on the monitor, the system must not be used as an aid when reversing.
