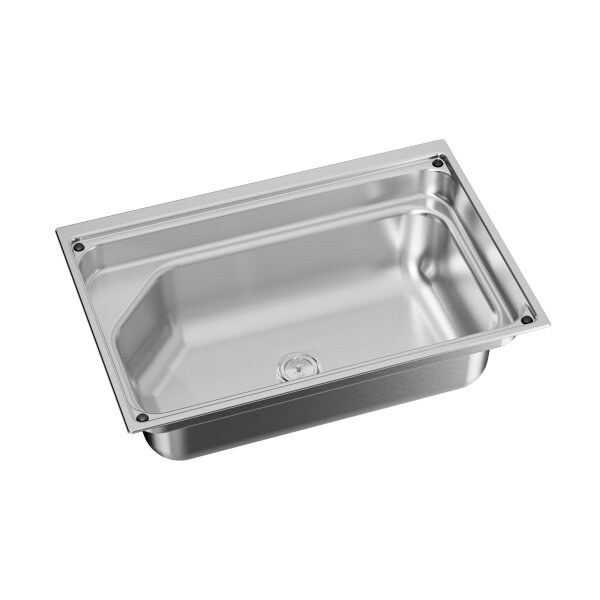

Dometic CVS 1525 – Rectangular Stainless Steel Sink without Glass Lid
The Dometic CVS 1525 is a compact rectangular built-in stainless steel sink for motorhomes, campervans and caravans. Part of the Dometic Cooking Vision range, it combines a space-saving design with an easy-to-clean stainless steel basin. With external dimensions of 525 × 350 mm, it offers a larger basin shape than the smaller round and square models in the range.
Rectangular Stainless Steel Sink for Mobile Kitchens
Thanks to its rectangular shape, the Dometic CVS 1525 provides a practical sink area for everyday use in a vehicle kitchen. The robust stainless steel basin is easy to clean and suitable for washing up and preparing meals while travelling.
This version is supplied without a glass lid. The sink therefore remains accessible at all times and requires no additional clearance for opening a glass cover.
Without an Integrated Tap Mounting Hole
The Dometic CVS 1525 does not have a tap mounting hole in the sink rim. A suitable tap must therefore be installed separately, for example in the kitchen worktop.
When planning the kitchen layout, the necessary installation clearances and the space required for the tap must be taken into account. A tap is not included in the scope of delivery.
Installation Cut-Out with Chamfered Corners
The Dometic CVS 1525 has external dimensions of 525 × 350 mm. According to the Dometic installation drawing, a 507 × 338 mm cut-out with chamfered corners is required.
The cut-out contour specifies 30 × 45° chamfers at the two upper corners and 10 × 45° chamfers at the two lower corners. The exact cut-out drawing in the Dometic installation manual must therefore be followed when preparing the kitchen worktop.
The sink is designed for a worktop thickness of 15 to 33 mm. At least 250 mm of clearance below the worktop must be available. The sink is secured using four mounting clamps and the corresponding fixing screws.
Scope of Delivery Including Siphon and Mounting Hardware
In addition to the Dometic CVS 1525 stainless steel sink, the scope of delivery includes a siphon, rubber seal, mounting clamps, fixing screws and screw head covers. The components provided for securing the sink and connecting its drain are therefore included.
Key Benefits of the Dometic CVS 1525
- Rectangular stainless steel sink from the Dometic Cooking Vision range
- Practical design for motorhomes, campervans and caravans
- Version without glass lid
- Easy-to-clean stainless steel basin
- External dimensions of 525 × 350 mm
- Installation cut-out 507 × 338 mm with chamfered corners
- Suitable for worktops with a thickness of 15 to 33 mm
- No integrated tap mounting hole
- Siphon, rubber seal and complete mounting hardware included
Also Available with a Glass Lid
The Dometic CVS 1525 is also available with a hinged glass lid. This version additionally features an integrated tap mounting hole with a diameter of 33 mm and is suitable for use with a compatible fold-down tap. Both versions require the same installation cut-out according to the Dometic installation drawing.
