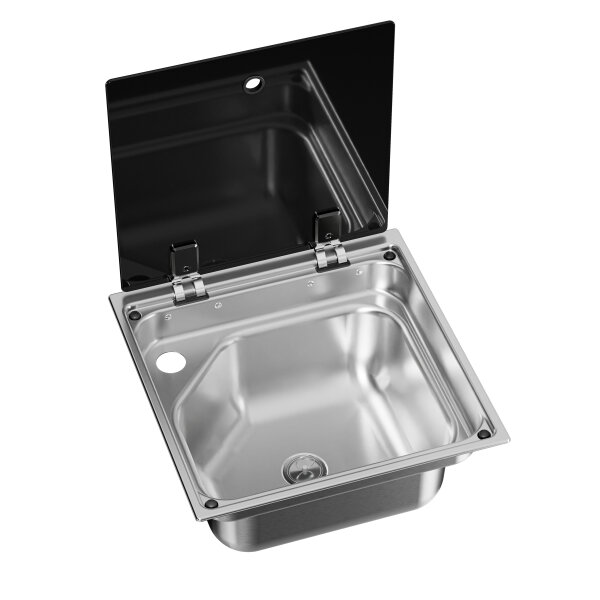

Dometic CVS 1350G – Square Stainless Steel Sink with Black Safety Glass Lid
The Dometic CVS 1350G is a compact square built-in stainless steel sink with a hinged black glass lid for motorhomes, campervans and caravans. Part of the Dometic Cooking Vision range, it combines an easy-to-clean stainless steel basin with a space-saving design and a practical additional cover surface. With external dimensions of 350 × 350 mm, it is particularly suitable for vehicle kitchens where space is limited.
Black Safety Glass Lid Providing Additional Worktop Space
The hinged black safety glass lid covers the sink when not in use and provides additional worktop and storage space when closed. The black glass surface creates an elegant contrast with the stainless steel basin and gives the kitchen unit a coordinated appearance.
To use the sink, the glass lid is lifted upwards. Sufficient clearance for fully opening the lid should therefore be taken into account when planning the vehicle kitchen.
Integrated Tap Mounting Hole with a Diameter of 33 mm
The Dometic CVS 1350G features an integrated tap mounting hole with a diameter of 33 mm. This allows a suitable tap to be installed directly on the sink without requiring an additional hole in the kitchen worktop.
A compatible fold-down tap is required for use with the hinged glass lid. Its height in the folded-down position must allow the glass lid to close completely. A tap is not included in the scope of delivery.
Installation Cut-Out with Chamfered Corners
The Dometic CVS 1350G has external dimensions of 350 × 350 mm. According to the Dometic installation drawing, a 332 × 338 mm cut-out with chamfered corners is required.
The cut-out contour specifies 30 × 45° chamfers at the two upper corners and 10 × 45° chamfers at the two lower corners. The exact cut-out drawing in the Dometic installation manual must therefore be followed when preparing the kitchen worktop.
Installation is intended for a worktop thickness of 15 to 33 mm. At least 250 mm of clearance below the worktop must be available. The sink is secured using the supplied mounting clamps and fixing screws.
Scope of Delivery Including Siphon and Mounting Hardware
The scope of delivery includes the Dometic CVS 1350G stainless steel sink with black safety glass lid, a siphon, rubber seal, mounting clamps, fixing screws and screw head covers. The components provided for securing the sink and connecting its drain are therefore included.
Key Benefits of the Dometic CVS 1350G
- Square stainless steel sink from the Dometic Cooking Vision range
- Hinged black safety glass lid
- Additional worktop and storage space when the glass lid is closed
- Integrated tap mounting hole with a diameter of 33 mm
- Suitable for use with a compatible fold-down tap
- Easy-to-clean stainless steel basin with compact external dimensions
- External dimensions of 350 × 350 mm
- Installation cut-out 332 × 338 mm with chamfered corners
- Suitable for worktops with a thickness of 15 to 33 mm
- Siphon, rubber seal and complete mounting hardware included
Also Available without a Glass Lid
The Dometic CVS 1350 is also available without a glass lid. This version has no integrated tap mounting hole and is suitable for kitchens where the tap is to be installed separately in the worktop. Both versions have the same external dimensions and require the same cut-out contour according to the Dometic installation drawing.
