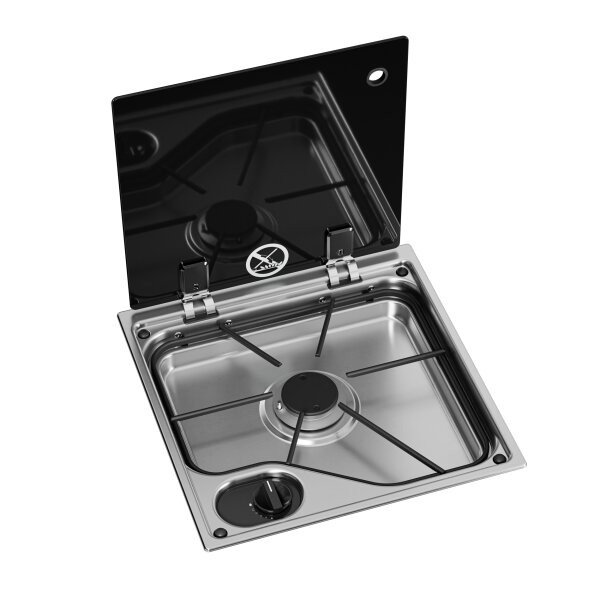

Dometic CVH 1350G – 1-Burner Gas Hob with Glass Lid and 12 V Ignition
The Dometic CVH 1350G is a compact 1-burner gas hob for motorhomes, campervans and caravans from the Dometic Cooking Vision range. With a footprint of just 350 × 350 mm, it is particularly suitable for mobile kitchens where space is limited.
A powerful 2.0 kW gas burner, convenient electronic 12 V ignition and a heat-resistant safety glass lid with soft-close hinges combine practical functionality with a modern, space-saving design.
Powerful 2.0 kW Gas Burner
The Dometic CVH 1350G features a gas burner with a heat output of 2.0 kW. It is suitable for quickly heating food and drinks as well as preparing complete meals using a single cooking zone.
The gas flame can be adjusted individually using a control knob. The electronic 12 V ignition allows convenient lighting of the gas flame without matches or a lighter.
Heat-Resistant Glass Lid for Additional Worktop Space
The heat-resistant safety glass lid protects the hob when it is not in use. When closed, it provides an additional flat surface in the mobile kitchen.
The soft-close hinges allow the glass lid to close gently. The stainless steel surface and removable pan support make the hob easier to clean and maintain.
Important note: The glass lid must only be closed once the gas burner has been switched off and the hob has cooled down sufficiently.
Electronic Ignition and Integrated Safety Features
The Dometic CVH 1350G features convenient electronic 12 V ignition and an integrated flame failure safety system that automatically shuts off the gas supply if the flame is accidentally extinguished.
An additional glass lid safety shut-off system interrupts the gas supply when the lid is closed. These safety functions require a correctly connected 12 V power supply in accordance with the Dometic installation instructions.
Space-Saving Installation in Motorhomes and Caravans
With external dimensions of 350 × 350 × 97 mm, the gas hob takes up very little space on the kitchen worktop. The required installation cut-out measures 332 × 338 mm. Please refer to the Dometic installation drawing for the exact cut-out shape.
The hob is designed for operation with LPG (liquefied petroleum gas). This version is intended for a gas supply pressure of 30 mbar.
Installation and safety information: Installation and connection to the gas supply must be carried out by appropriately qualified personnel in accordance with the Dometic installation instructions and applicable regulations. The specified safety clearances and ventilation requirements must be observed. Adequate ventilation must be ensured during cooking.
Dometic Cooking Vision – Modern Cooking on the Move
The CVH 1350G is part of the Dometic Cooking Vision range, which combines modern design with practical functionality for mobile kitchens. Unlike the CVC cooking and sink combinations, this gas hob has no integrated sink and can therefore be flexibly combined with a separately selected sink.
Key Benefits of the Dometic CVH 1350G
- Compact 1-burner gas hob for motorhomes and caravans
- Gas burner with 2.0 kW heat output
- Convenient electronic 12 V ignition
- Integrated flame failure protection
- Automatic gas shut-off when the glass lid is closed
- Heat-resistant safety glass lid with soft-close hinges
- Easy-to-clean stainless steel surface and removable pan support
- Additional flat surface when the hob is closed and has cooled down
- Designed for 30 mbar LPG operation
- Space-saving external dimensions of 350 × 350 mm
- Part of the Dometic Cooking Vision range
