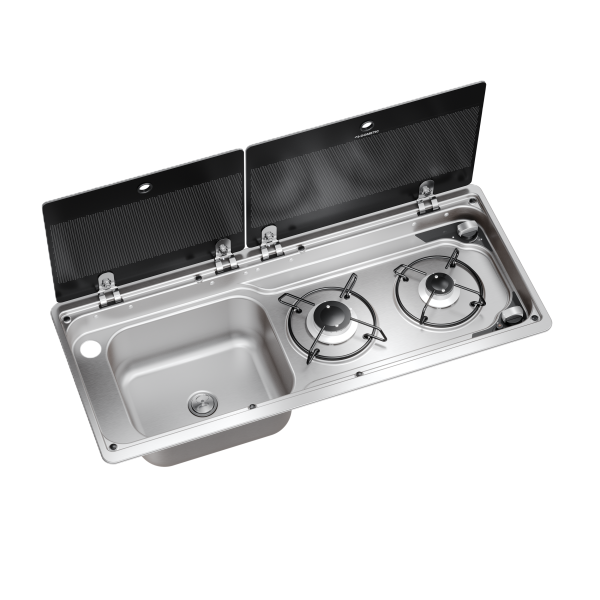

Dometic MO 9722L – Gas Hob and Sink Combination with Sink on the Left and Piezo Ignition
The Dometic MO 9722L, manufacturer article number 9620017484, combines a two-burner gas hob and an integrated sink on the left in a particularly compact unit. With an overall width of just 760 mm, this hob and sink combination is ideal for motorhomes and caravans where efficient use of limited kitchen space is essential.
Cooking and Washing Up in a Compact Space
The two gas burners, with outputs of 1.1 kW and 1.8 kW, allow you to prepare a variety of meals. Thanks to the mechanical piezo ignition with push button, the burners can be lit without an additional electrical power supply. Flame failure safety devices automatically interrupt the gas supply if a flame goes out.
The sink positioned on the left complements the hob to create a practical kitchen solution. An integrated mounting hole with a diameter of 33 mm allows the installation of a suitable water tap. When selecting a tap, its installation dimensions and mounting requirements must also be taken into account.
Two Heat-Resistant Safety Glass Covers
The two safety glass covers protect the hob and sink when not in use. When closed, they provide an additional flat work surface. The glass covers must only be closed after the gas burners have been switched off and have cooled down sufficiently.
The removable enamelled pan supports make cleaning the hob easier.
Key Features and Benefits
-
2-in-1 combination: Gas hob and sink in a compact integrated unit
-
Sink on the left: Space-saving layout for motorhome and caravan kitchens
-
Two gas burners: With outputs of 1.1 kW and 1.8 kW
-
Mechanical piezo ignition: Push-button operation, no 12 V connection required
-
Flame failure safety devices: Automatically shut off the gas supply if a flame goes out
-
Tap mounting hole: Ø 33 mm
-
Two safety glass covers: Additional worktop space when closed
-
Removable pan supports: Enamelled and easy to clean
-
Installation cut-out: 742 × 307 mm with rounded corners
-
Overall dimensions: 760 × 325 mm (width × depth)
Installation and Replacement Information
The Dometic MO 9722L is designed for permanent installation in motorhome and caravan kitchens. The required installation cut-out measures 742 × 307 mm. When replacing an existing appliance, both the dimensions and the exact cut-out shape, as well as the available installation space, should be checked against the Dometic installation drawing.
The water tap must be selected separately and must be suitable for the existing mounting hole and installation conditions. According to Dometic, a siphon and rubber seal are included in the scope of delivery.
The gas connection must be installed by qualified personnel in accordance with applicable regulations and the Dometic installation manual. All specified safety clearances and ventilation requirements must be observed.
Product safety information
Manufacturer information:
Dometic Germany GmbH
Hollefeldstr. 63
Nordrhein-Westfalen
Emsdetten, Deutschland, 48282
info@dometic-waeco.de
https://www.dometic.com/
| Item information |
Value |
| Shipping weight: |
7,60 kg
|
| Item weight: |
5,30 kg
|
| Number of gas burners: |
2 |
| Sink position: |
Left |
| Tap mounting hole: |
Ø 33 mm |
| Overall dimensions (W × D): |
760 × 325 mm |
| Installation cut-out (W × D): |
742 × 307 mm (cut-out shape according to Dometic installation drawing) |
| Burner output 1: |
1.1 kW |
| Burner output 2: |
1.8 kW |
| Total burner output: |
2.9 kW |
| Gas consumption (G30): |
211 g/h at rated output |
| Gas type: |
Propane/butane (LPG) |
| Gas connection pressure (DE): |
30 mbar |
| Ignition: |
Mechanical piezo ignition with push button (no 12 V connection required) |
| Safety: |
Flame failure safety devices with thermocouples |
| Pan supports: |
Removable, enamelled |
| Cover: |
Two heat-resistant safety glass covers |
