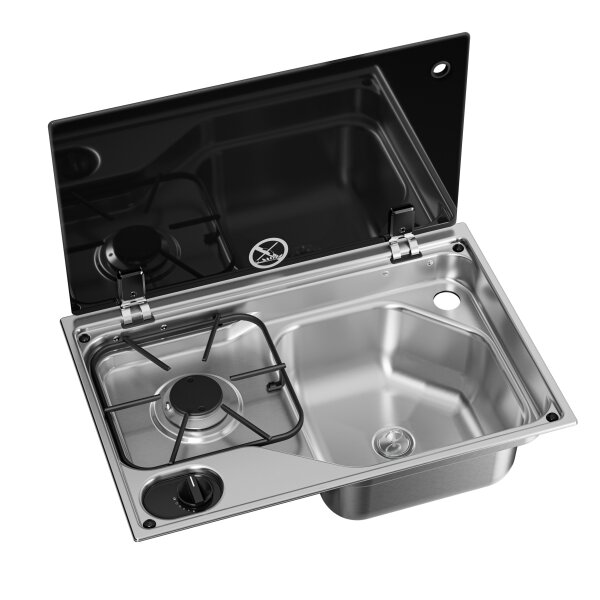

Dometic CVC 1525G RH – Gas Hob and Sink Combination with Sink on Right
The Dometic CVC 1525G RH combines a single-burner gas hob with an integrated stainless steel sink on the right in an exceptionally compact unit. With a width of just 525 mm, this gas hob and sink combination is ideal for motorhomes, campervans and caravans where available kitchen space needs to be used efficiently.
As part of the Dometic Cooking Vision range, the unit combines a modern, coordinated design with practical features for mobile kitchens.
Gas Hob with Electronic 12 V Ignition
The gas burner delivers 1.1 kW of cooking power, making it suitable for preparing meals in limited spaces. The electronic 12 V ignition provides convenient operation using the vehicle's electrical system.
An integrated flame supervision system shuts off the gas supply if the flame goes out. The removable pan support makes the hob easier to clean.
Integrated Stainless Steel Sink on the Right
The stainless steel sink positioned on the right complements the gas hob to create a space-saving kitchen solution. Combining cooking and washing facilities in a single unit reduces the amount of worktop space required, making it particularly suitable for compact vehicle kitchens.
The sink features an integrated tap mounting hole with a diameter of 33 mm for installing an optional water tap. When selecting a suitable tap, both the mounting hole diameter and the tap's installation dimensions and fixing requirements should be considered.
Heat-Resistant Glass Lid with Soft-Close Hinges
The heat-resistant safety glass lid protects the hob and sink when not in use. When closed, it provides an additional flat work surface.
The soft-close hinges allow the glass lid to close gently. Before closing the lid, the gas burner must be switched off and allowed to cool sufficiently.
Key Benefits at a Glance
-
2-in-1 combination: Gas hob and stainless steel sink in one compact unit
-
Sink on the right: Space-saving layout for motorhomes and caravans
-
Single gas burner: 1.1 kW output
-
Electronic 12 V ignition: Convenient ignition using the vehicle's electrical system
-
Flame supervision: Automatic gas shut-off if the flame goes out
-
Tap mounting hole: Ø 33 mm
-
Safety glass lid: Additional work surface when closed
-
Soft-close hinges: Gentle closing of the glass lid
-
Stainless steel surface: Modern design and easy cleaning
-
Overall dimensions: 525 × 350 × 170 mm (W × D × H)
-
Cut-out dimensions: 507 × 338 mm according to the Dometic installation drawing
Installation and Replacement Information
The Dometic CVC 1525G RH is designed for permanent installation in motorhome and caravan kitchens. The required cut-out dimensions are 507 × 338 mm. The exact cut-out shape specified in the Dometic installation drawing must be observed.
The overall height of 170 mm, including the sink bowl extending below the worktop, must be taken into account when planning the installation space. In particular, when replacing an existing unit, the available space should be carefully checked.
The electronic ignition requires a 12 V DC connection protected by a 1 A fuse. The electrical connection must be installed in accordance with the Dometic installation instructions.
The water tap is available separately. The siphon and rubber seal are included in the scope of delivery.
The gas connection must be carried out by qualified personnel in accordance with applicable regulations and the Dometic installation instructions. The specified safety clearances and ventilation requirements must be observed.
