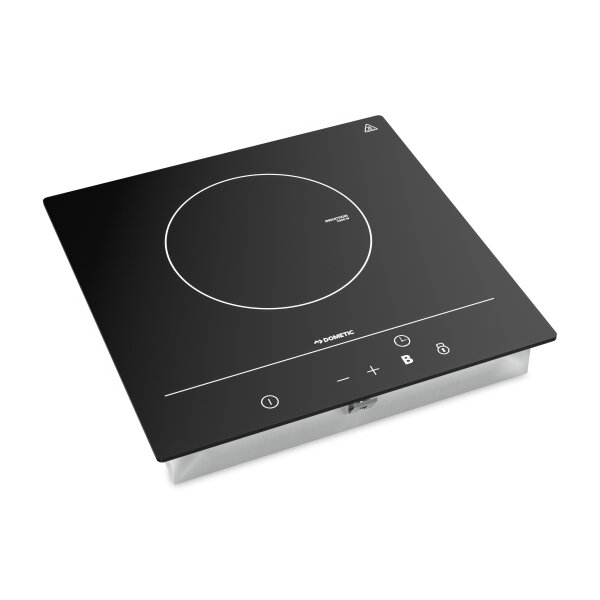

Dometic CVI 1350 – Single-Zone Induction Hob with 230 V and 2,300 W BOOST
The Dometic CVI 1350 is a compact single-zone induction hob for motorhomes, campervans, caravans and boats from the Dometic Cooking Vision range. With external dimensions of just 350 × 350 mm, it is particularly suitable for mobile kitchens where space is limited.
Modern induction technology provides 2,000 W of standard power and a BOOST function delivering up to 2,300 W for a maximum of five minutes. Nine power levels, intuitive touch controls and an easy-to-clean glass-ceramic surface ensure convenient cooking on the move.
Powerful Induction with Convenient Controls
The CVI 1350 heats suitable cookware directly using an electromagnetic field. The power can be adjusted individually across nine levels. A time-limited BOOST function is available for particularly fast heating.
Features include a timer adjustable from 0 to 99 minutes, a child lock with control lock, overtemperature protection, a residual heat indicator and automatic safety shut-off.
Induction-compatible cookware with a magnetic base and a base diameter of at least 140 mm is required.
230 V Power Supply and Inverter Operation
The Dometic CVI 1350 requires a 230 V AC power supply at 50 Hz. It can be operated using a suitable shore power connection or an appropriately rated inverter.
Important for off-grid operation: Dometic recommends an inverter with a continuous output of at least 2,300 W and a suitably rated lithium battery bank with a battery management system (BMS).
At full BOOST power, the current drawn from a 12 V battery system through an inverter can exceed 190 A. The battery, BMS, cabling and circuit protection must therefore be designed to handle this high current. Inverter conversion losses and other electrical appliances operating at the same time must also be taken into account.
Space-Saving Installation in Motorhomes and Campervans
With external dimensions of 350 × 350 × 55 mm, the hob requires very little space. The installation cut-out measures 330 × 330 mm (± 2 mm). Suitable worktops must be heat-resistant and have a thickness of 10 to 40 mm.
Installation and safety information: Electrical installation must be carried out by qualified personnel in accordance with the Dometic installation instructions. The specified safety clearances and ventilation requirements must be observed. The hob must only be operated when the vehicle is stationary.
Dometic Cooking Vision – Modern Cooking on the Move
As part of the Dometic Cooking Vision range, the CVI 1350 combines modern induction technology with a space-saving design. It can be flexibly combined with a separately available sink and is suitable for mobile kitchens with an appropriate 230 V power supply.
Key Benefits of the Dometic CVI 1350
- Compact single-zone induction hob for motorhomes, campervans, caravans and boats
- 2,000 W standard power and up to 2,300 W in BOOST mode
- Touch controls with 9 power levels
- Timer, child lock and integrated safety features
- Easy-to-clean glass-ceramic surface
- Space-saving external dimensions of 350 × 350 mm
- Operation via a suitable 230 V power supply or inverter
- Part of the Dometic Cooking Vision range
