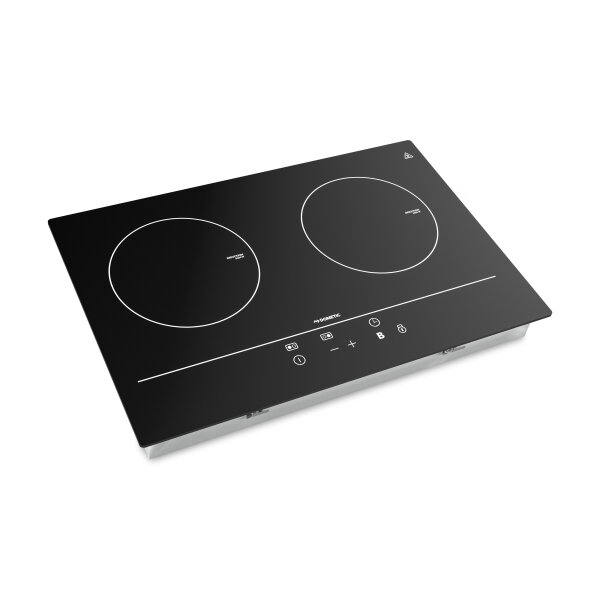

Dometic CVI 1525 – 2-Zone Induction Hob with 230 V and 2,300 W Total Power
The Dometic CVI 1525 is a compact 2-zone induction hob for motorhomes, campervans, caravans and boats from the Dometic Cooking Vision range. Its two side-by-side cooking zones allow different dishes to be prepared at the same time. With external dimensions of 525 × 350 mm, the hob is particularly suitable for mobile kitchens where space is limited.
Modern induction technology provides 1,000 W on the left cooking zone and 1,300 W on the right cooking zone. For particularly fast heating, the BOOST function increases the right cooking zone's power to up to 1,700 W. The maximum total power of the hob is 2,300 W.
Two Induction Cooking Zones with Convenient Controls
The CVI 1525 heats suitable cookware directly using an electromagnetic field. Both cooking zones can be adjusted individually using intuitive touch controls with nine power levels per zone. The BOOST function is available exclusively for the right cooking zone and is limited to a maximum of five minutes.
Features include a timer adjustable from 0 to 99 minutes, a child lock with control lock, overtemperature protection, a residual heat indicator and automatic safety shut-off.
Induction-compatible cookware with a magnetic base and a base diameter of at least 140 mm is required.
230 V Power Supply and Inverter Operation
The Dometic CVI 1525 requires a 230 V AC power supply at 50 Hz. The maximum total power is 2,300 W. With a 230 V power supply protected by a 10 A circuit breaker, the hob can therefore use almost the entire available connection capacity. Other electrical appliances operating at the same time must be taken into account accordingly.
Important for off-grid operation: Dometic recommends an inverter with a continuous output of at least 2,300 W and a suitably rated lithium battery bank with a battery management system (BMS).
At a power consumption of 2,300 W, the current drawn from a 12 V battery system through an inverter can exceed 190 A. The battery, BMS, cabling and circuit protection must be designed to handle this load. Inverter conversion losses must also be taken into account.
Space-Saving Installation in Motorhomes and Campervans
With external dimensions of 525 × 350 × 55 mm, the CVI 1525 can be integrated into a suitable kitchen worktop while saving space. The required installation cut-out measures 505 × 330 mm (± 2 mm). Suitable worktops must be heat-resistant and have a thickness of 10 to 40 mm.
Installation and safety information: Electrical installation must be carried out by qualified personnel in accordance with the Dometic installation instructions. The specified safety clearances and ventilation requirements must be observed. The hob must only be operated when the vehicle is stationary.
Dometic Cooking Vision – Modern Cooking on the Move
As part of the Dometic Cooking Vision range, the CVI 1525 combines modern induction technology with a space-saving design. It can be flexibly combined with a separately available sink and is suitable for mobile kitchens with an appropriate 230 V power supply.
Key Benefits of the Dometic CVI 1525
- 2-zone induction hob for motorhomes, campervans, caravans and boats
- Two side-by-side cooking zones with 1,000 W and 1,300 W
- BOOST function up to 1,700 W on the right cooking zone
- Maximum total power limited to 2,300 W
- Touch controls with 9 power levels per cooking zone
- Timer, child lock and integrated safety features
- Easy-to-clean glass-ceramic surface
- Space-saving external dimensions of 525 × 350 mm
- Operation via a suitable 230 V power supply or inverter
- Part of the Dometic Cooking Vision range
