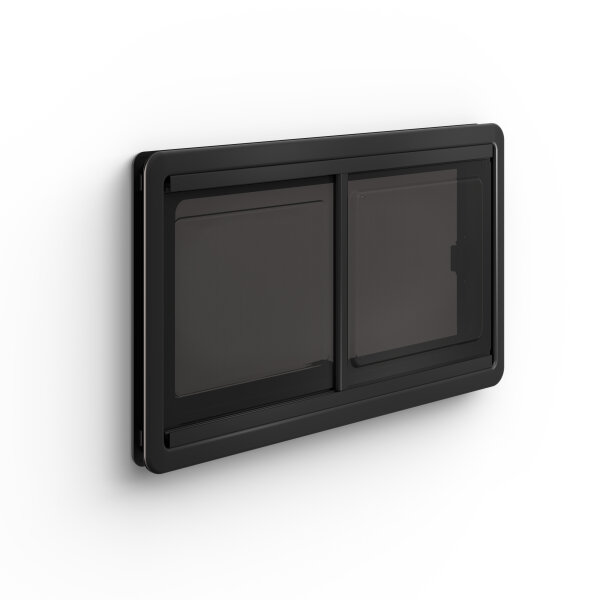

Dometic S10 PUR-win sliding window 700 x 400 mm with black inner frame
The Dometic S10 PUR-win sliding window 700 x 400 mm is a modern side window for motorhomes and caravans. The side-sliding window pane provides convenient ventilation without requiring a window section to project outwards when opened.
The Privacy Black double acrylic glazing gives the window its characteristic dark appearance. The steel-reinforced PUR frame combines modern design with a sturdy construction.
On this version, both the outer frame and the inner frame are black (RAL 9005). The integrated blackout blind is colour-matched to the black inner frame on the interior-facing side and aluminium-coated on the exterior-facing side. It is complemented by an integrated black fly screen.
Space-saving opening with a sliding window pane
Unlike a hinged window, the movable section of the Dometic S10 PUR-win sliding window slides sideways within the plane of the window. This means that no window pane projects outwards when the window is opened.
This design is particularly suitable for installation situations where space outside the vehicle is limited or where an outward-opening hinged window could be inconvenient.
Suitable for the left and right side of the vehicle
Thanks to its design and the intended rainwater drainage system, the Dometic S10 PUR-win sliding window can be installed on either the left or right side of the vehicle.
Important installation note: The movable section of the sliding window must always face forwards in the direction of travel. This installation orientation is essential due to the design of the rainwater drainage system. If the window is installed in the opposite direction, moisture may enter the vehicle, particularly when driving in rainy conditions.
Regardless of which side of the vehicle the window is installed on, the movable window section must therefore always be positioned at the front in the direction of travel.
Integrated blackout blind and black fly screen
The black inner frame of the Dometic S10 PUR-win sliding window features an integrated blackout blind and a black fly screen.
The interior-facing side of the blackout blind is colour-matched to the black inner frame, while the exterior-facing side is aluminium-coated. This allows convenient control of incoming light and privacy.
When the window is open, the fly screen allows fresh air to enter while helping to keep insects out of the vehicle.
Adaptable for wall thicknesses from 1 to 53 mm
The Dometic S10 PUR-win sliding window is supplied ready for installation in a 26 mm wall thickness.
For other installation requirements, the window can be adapted accordingly and is suitable for wall thicknesses from 1 to 53 mm.
Black inner frame for a modern vehicle interior
This version of the Dometic S10 PUR-win 700 x 400 mm features a black inner frame (RAL 9005). Combined with the black outer frame and Privacy Black glazing, this creates a consistently dark and modern appearance.
This version is particularly suitable for vehicle conversions where the windows and interior design are intentionally finished in darker tones.
Advantages of the Dometic S10 PUR-win sliding window 700 x 400 mm
- Sliding window for motorhomes and caravans
- Side-sliding window pane – no window section projecting outwards
-
Suitable for the left and right side of the vehicle
-
Movable window section is installed facing forwards in the direction of travel
- Privacy Black double acrylic glazing
- Steel-reinforced PUR frame
-
Integrated blackout blind
- Interior-facing side of the blackout blind colour-matched to the inner frame
-
Exterior-facing side of the blackout blind aluminium-coated
-
Integrated black fly screen
-
Outer frame Black (RAL 9005)
-
Inner frame Black (RAL 9005)
-
Ready for installation in a 26 mm wall thickness
-
Adaptable for wall thicknesses from 1 to 53 mm
