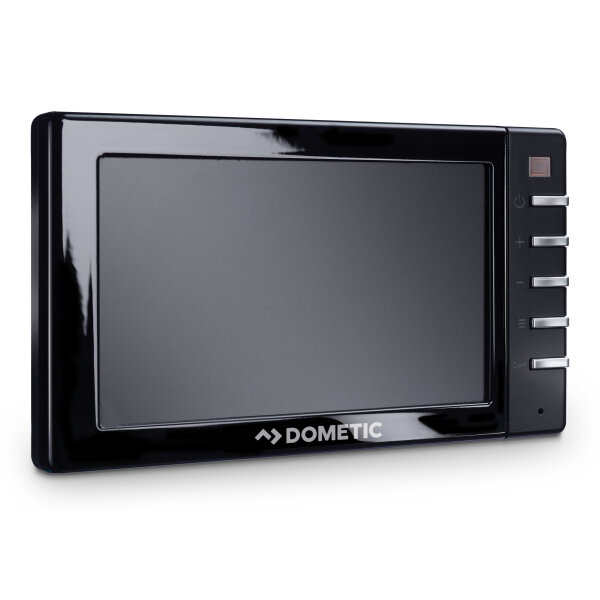

Dometic PerfectView M 55L AHD – Compact Reversing Monitor for up to 3 Cameras
The Dometic PerfectView M 55L AHD is a compact 5-inch LCD monitor for reversing cameras and other vehicle cameras. Featuring AHD (Analog High Definition) technology, LED backlighting and automatic brightness adjustment, it provides clear images under varying lighting conditions. It is suitable for use in motorhomes, campervans, towing vehicles and commercial vehicles.
Three separate camera inputs allow different areas around the vehicle to be monitored. For example, the monitor can display images from a reversing camera, a side-view camera or a trailer camera. Camera selection can be controlled manually or automatically via the corresponding control signals.
Three Camera Inputs for Versatile Applications
The PerfectView M 55L AHD features three camera connections (CAM1, CAM2 and CAM3), allowing up to three compatible cameras to be operated with a single monitor.
-
CAM1: Camera input with a trigger connection, for example to activate the reversing camera automatically when reverse gear is engaged.
-
CAM2: Additional camera input with a trigger connection, for example for a side-view camera activated by the turn signal.
-
CAM3: Third camera input with video signal detection, suitable for connecting an additional trailer camera.
The connected cameras can be selected individually using the CAM button. Simultaneous display of multiple camera images (split-screen) is not supported by this model.
Automatic Camera Switching and Trailer Detection
When connected accordingly, the monitor can automatically switch to the reversing camera as soon as reverse gear is engaged. A side-view camera can also be activated via the vehicle's turn signal.
The integrated trailer detection function enables automatic selection between the vehicle camera and a trailer camera when the cameras are connected accordingly. This makes the camera system easier to use when driving with or without a trailer.
Clear Images with AHD Technology
The 5-inch colour display combines LCD technology with energy-efficient LED backlighting. A sensor automatically adjusts the screen brightness to the ambient light. Brightness, contrast and colour settings can also be adjusted manually.
Each camera input can be configured individually for normal or mirrored image display, allowing a rear-view mirror-style image where required.
The monitor supports AHD 1080p and 720p video formats as well as PAL and NTSC. When selecting a camera, both the video signal and the electrical connections and system compatibility must be taken into account.
Compact Design and Convenient Operation
Thanks to its slim housing, the PerfectView M 55L AHD can be installed in the driver's cab without taking up much space. The adjustable monitor bracket allows the viewing angle to be customised, while concealed cable routing helps achieve a tidy installation.
Illuminated control buttons, an integrated speaker and automatic day/night brightness adjustment complete the monitor's features.
Scope of Delivery
- Dometic PerfectView M 55L AHD LCD monitor
- Monitor bracket with cover
- Connection cable
- Mounting hardware
- Installation and operating instructions
Note: Cameras are not included in the scope of delivery. Please check the compatibility of existing cameras and connection cables before purchasing.
