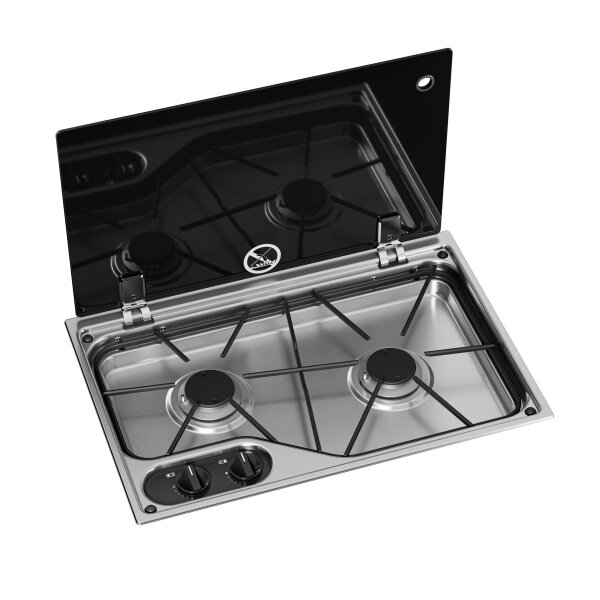

Dometic CVH 1525G – 2-Burner Gas Hob with Glass Lid and 12 V Ignition
The Dometic CVH 1525G is a modern 2-burner gas hob for motorhomes and caravans from the Dometic Cooking Vision range. With its compact dimensions of 525 × 350 mm, it is particularly suitable for space-saving installation in mobile kitchens.
Two independently adjustable gas burners with a combined heat output of 3.1 kW, convenient electronic 12 V ignition and a heat-resistant safety glass lid with soft-close hinges combine practical functionality with contemporary design.
Two Gas Burners with a Total Heat Output of 3.1 kW
The Dometic CVH 1525G features two gas burners with different heat outputs:
-
1.1 kW: For smaller pans, gentle heating and preparing smaller portions
-
2.0 kW: For faster heating, larger pans and preparing more substantial meals
Both burners can be adjusted individually using separate control knobs. The electronic 12 V ignition allows convenient lighting of the gas flames without matches or a lighter.
Heat-Resistant Glass Lid for Additional Worktop Space
The heat-resistant safety glass lid protects the hob when it is not in use. When closed, it provides an additional flat surface in the mobile kitchen.
The soft-close hinges allow the glass lid to close gently. The modern design blends harmoniously into different kitchen layouts.
Important note: The glass lid must only be closed once all gas burners have been switched off and the hob has cooled down sufficiently.
Electronic Ignition and Integrated Safety Features
The Dometic CVH 1525G features convenient electronic 12 V ignition and an integrated flame failure safety system that automatically shuts off the gas supply if a flame is accidentally extinguished.
An additional glass lid safety shut-off system interrupts the gas supply when the lid is closed. These safety functions require a correctly connected 12 V power supply in accordance with the Dometic installation instructions.
Space-Saving Installation in Motorhomes and Caravans
With external dimensions of 525 × 350 × 97 mm, the gas hob can be integrated into the kitchen worktop while taking up very little space. The required installation cut-out measures 507 × 338 mm. Please refer to the Dometic installation drawing for the exact cut-out shape.
The hob is designed for operation with LPG (liquefied petroleum gas). This version is intended for a gas supply pressure of 30 mbar.
Installation and safety information: Installation and connection to the gas supply must be carried out by appropriately qualified personnel in accordance with the Dometic installation instructions and applicable regulations. The specified safety clearances and ventilation requirements must be observed. Adequate ventilation must be ensured during cooking.
Dometic Cooking Vision – Modern Cooking on the Move
The CVH 1525G is part of the Dometic Cooking Vision range, which combines modern design with practical functionality for mobile kitchens. Unlike the CVC cooking and sink combinations, this gas hob has no integrated sink and can therefore be flexibly combined with a separately selected sink.
Key Benefits of the Dometic CVH 1525G
- Compact 2-burner gas hob for motorhomes and caravans
- Two independently adjustable gas burners rated at 1.1 and 2.0 kW
- Total heat output of 3.1 kW
- Convenient electronic 12 V ignition
- Integrated flame failure protection
- Automatic gas shut-off when the glass lid is closed
- Heat-resistant safety glass lid with soft-close hinges
- Additional flat surface when the hob is closed and has cooled down
- Designed for 30 mbar LPG operation
- Space-saving external dimensions of 525 × 350 mm
- Part of the Dometic Cooking Vision range
