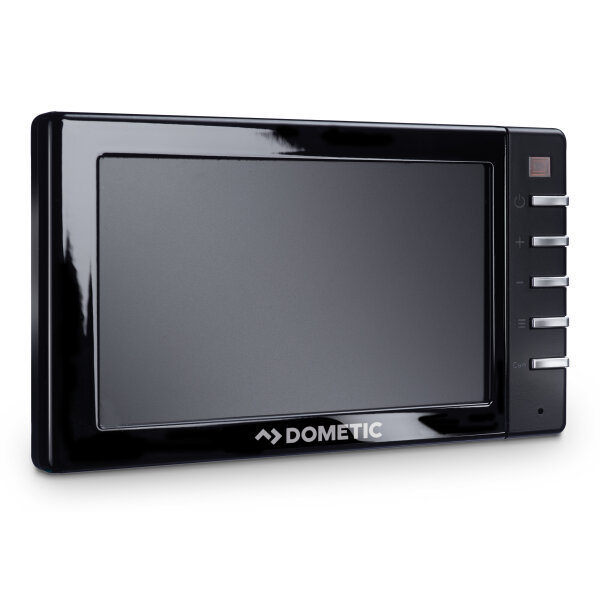

Dometic PerfectView M 75L AHD – 7-Inch Reversing Monitor for up to 3 Cameras
The Dometic PerfectView M 75L AHD is a high-performance 7-inch LCD monitor for reversing cameras and other vehicle cameras. Featuring AHD (Analog High Definition) technology, particularly bright LED backlighting and automatic brightness adjustment, it delivers high-contrast images under varying lighting conditions. It is suitable for motorhomes, campervans, towing vehicles and commercial vehicles.
The generous 7-inch display provides a comfortable view when manoeuvring and reversing. Three separate camera inputs allow different areas around the vehicle to be monitored. Camera images can be selected manually or automatically via the corresponding control signals.
Three Camera Inputs for Versatile Applications
The PerfectView M 75L AHD features three camera connections (CAM1, CAM2 and CAM3), allowing up to three compatible cameras to be operated with a single monitor.
-
CAM1: Camera input with a trigger connection, for example to activate a reversing camera automatically when reverse gear is engaged.
-
CAM2: Additional camera input with a trigger connection, for example for a side-view camera activated by the turn signal.
-
CAM3: Third camera input with video signal detection, suitable for connecting an additional trailer camera.
The connected cameras can be selected individually using the CAM button. Simultaneous display of multiple camera images (split-screen) is not supported by this model.
Automatic Camera Switching and Trailer Detection
When connected accordingly, the monitor can automatically switch to the reversing camera as soon as reverse gear is engaged. A side-view camera can also be activated via the vehicle's turn signal.
The integrated trailer detection function enables automatic selection between the vehicle camera and a trailer camera when the cameras are connected accordingly. This makes the camera system easier to use when driving with or without a trailer.
Exceptionally Bright 7-Inch Display with AHD Technology
The 7-inch colour display (17.8 cm screen diagonal) combines LCD technology with energy-efficient LED backlighting. With a screen brightness of approximately 800 cd/m² and a resolution of more than 600,000 pixels, the monitor provides high-contrast, detailed images.
An integrated sensor automatically adjusts the screen brightness to the ambient light. Brightness, contrast and colour settings can also be adjusted individually.
Each camera input can be configured for normal or mirrored image display, allowing a rear-view mirror-style image where required.
The monitor supports AHD 1080p and 720p video formats as well as PAL and NTSC. When selecting a camera, both the video signal and the electrical connections and system compatibility must be taken into account.
Slim Design and Convenient Operation
Despite its generous screen size, the PerfectView M 75L AHD features a slim housing. The adjustable monitor bracket allows the viewing angle to be customised in the driver's cab, while concealed cable routing helps achieve a tidy installation.
Illuminated control buttons, an integrated speaker and automatic day/night brightness adjustment complete the monitor's features.
Scope of Delivery
- Dometic PerfectView M 75L AHD LCD monitor
- Monitor bracket with cover
- Connection cable
- Mounting hardware
- Installation and operating instructions
Note: Cameras are not included in the scope of delivery. Please check the compatibility of existing cameras and connection cables before purchasing.
