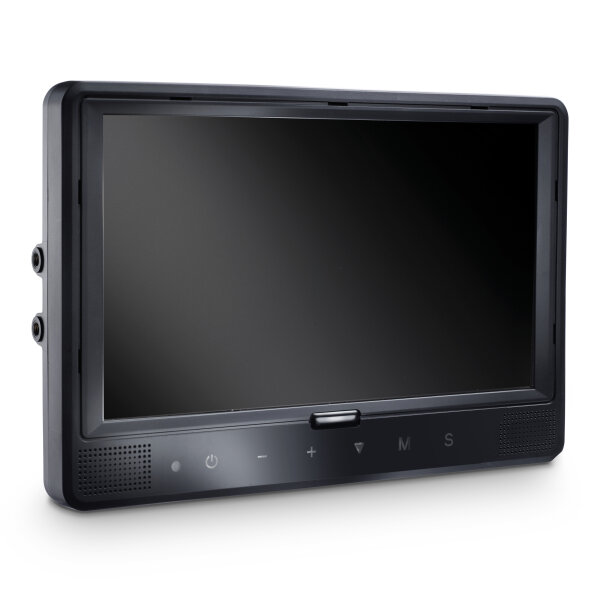

Dometic PerfectView M 9LQ – 9-Inch Quad Reversing Monitor with Touchscreen
The Dometic PerfectView M 9LQ is a large 9-inch LCD monitor for reversing cameras and other vehicle cameras. Its key feature is the integrated quad splitter, which allows images from up to four connected cameras to be displayed simultaneously on one screen.
Designed for professional vehicle applications, the monitor is particularly suitable for trucks, agricultural machinery, construction equipment and special-purpose vehicles. Its large display, flexible viewing modes and automatic camera activation help drivers monitor areas around the vehicle that are difficult to see.
Quad Splitter – Display Up to Four Camera Images Simultaneously
Unlike conventional reversing monitors, the PerfectView M 9LQ does not require the driver to switch between individual camera images. Its integrated quad splitter allows all four camera inputs to be displayed simultaneously.
Depending on the application, individual camera images or multiple cameras can be displayed in a split-screen view. A separate control input can also be used to activate a dual split-screen display.
This feature is particularly useful for large vehicles and machinery where several areas need to be monitored at the same time.
Four Camera Inputs for Rear, Side and Front Cameras
The monitor provides four camera connections for different applications:
- Rear camera: Connection for a reversing camera
- Right-side camera: Connection for a camera on the right side of the vehicle
- Left-side camera: Connection for a camera on the left side of the vehicle with video signal detection
- Front camera: Connection for a front-facing camera with video signal detection
Cameras can be selected manually or activated automatically via the corresponding control signals. For example, the reversing camera can be displayed when reverse gear is engaged, or a side camera can be activated when the turn indicator is operated.
Compatible Dometic Camera Models
The Dometic PerfectView M 9LQ is not compatible with every Dometic reversing camera. According to explicit confirmation from the manufacturer, compatibility is limited to the following camera models:
- Dometic PerfectView CAM 29S and CAM 29N
- Dometic PerfectView CAM 60 and CAM 80
- Dometic PerfectView CAM 45
- Dometic PerfectView CAM 55
- Dometic PerfectView CAM 80 AHD (only with an additional system cable)
- Dometic PerfectView CAM 40
- Dometic PerfectView CAM 44
Important: Compatibility with other Dometic camera models has not been confirmed. Additional connection components may be required depending on the camera model. Please check the necessary connection cables and adapters before purchasing.
Automatic Camera Switching with Adjustable Intervals
In addition to displaying several camera images simultaneously, the PerfectView M 9LQ features an automatic camera switching function (autoscan).
The connected cameras are displayed in sequence, with the display interval individually adjustable from 1 to 60 seconds. After the first cycle, only camera inputs with connected cameras are included.
This function is particularly useful when different areas around the vehicle need to be checked regularly without manually selecting each camera.
Automatic Reversing Camera and Adjustable Distance Markers
When connected accordingly, the reversing camera image is automatically activated as soon as reverse gear is engaged. The reversing camera takes priority over other camera views.
Adjustable distance markers can also be displayed to help drivers orient themselves when manoeuvring and assess the area behind the vehicle.
The distance markers provide additional guidance and do not replace direct observation of the vehicle's surroundings.
Large 9-Inch Display with Automatic Brightness Adjustment
The 9-inch colour display has a screen diagonal of 22.7 cm, a resolution of 800 × 480 pixels and LED backlighting. With a brightness of approximately 350 cd/m², it provides a clear view of the connected camera images.
An integrated light sensor automatically adjusts screen brightness to ambient lighting conditions. The removable sun visor also helps reduce unwanted light reflections on the display.
The monitor supports PAL and NTSC video standards with automatic switching. Adjustable image mirroring allows the display to be adapted to the position of the connected camera.
Convenient Operation via Touchscreen and Touch-Sensitive Buttons
The PerfectView M 9LQ can be operated directly via its touchscreen or the touch-sensitive buttons on the front panel. The menu system allows users to adjust camera views, automatic camera switching and various display settings.
An integrated speaker and additional audio and video connections extend the monitor's range of applications.
Scope of Delivery
- Dometic PerfectView M 9LQ LCD monitor
- Monitor mount
- Mounting bracket
- Four knurled screws
- Removable sun visor
- Connection cable
- Mounting hardware
- Installation and operating instructions
Note: Cameras are not included in the scope of delivery. Please observe the camera compatibility restrictions listed above.
