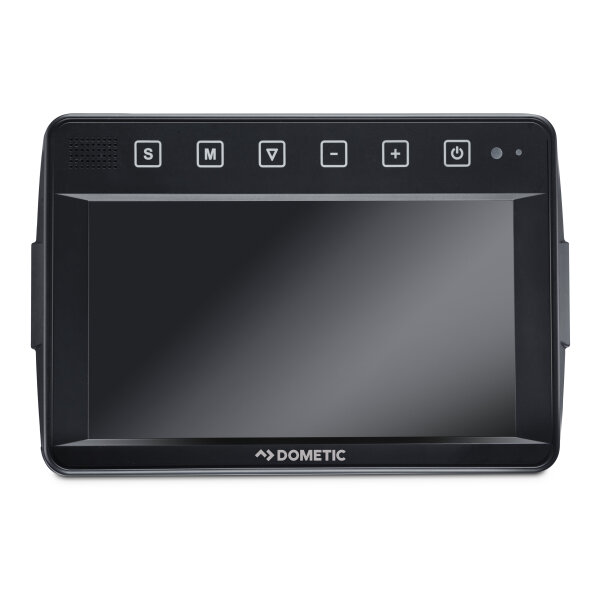

Dometic PerfectView M 70IP – Rugged 7-Inch Reversing Monitor with IP69K Protection
The Dometic PerfectView M 70IP is a particularly rugged 7-inch LCD monitor for reversing cameras and other vehicle cameras. Its IP69K-rated housing is designed for demanding operating conditions where moisture, dirt and powerful water jets may occur.
The monitor is particularly suitable for agricultural vehicles, construction machinery, fire service vehicles and other commercial or special-purpose vehicles. Three camera inputs allow different areas around the vehicle to be monitored using a single screen.
IP69K Protection for Demanding Working Environments
A key feature of the PerfectView M 70IP is its high resistance to water and dust. The IP69K protection rating makes the monitor particularly suitable for vehicles regularly operating in challenging environments.
Dometic specifically highlights its resistance to powerful water jets. This makes the monitor suitable for professional applications where conventional cab monitors may reach their limits.
However, the high protection rating does not mean that the monitor is designed for continuous underwater operation.
Three Camera Inputs for Improved Vehicle Visibility
The PerfectView M 70IP features three camera inputs. In addition to a reversing camera, further cameras can be connected to monitor the sides of the vehicle or working areas that are difficult to see.
Connected cameras can be selected manually or activated automatically via the corresponding trigger signals. The monitor also features automatic camera cycling, allowing available camera images to be displayed one after another.
This makes the monitor particularly suitable for vehicles where the driver needs to keep an eye on several areas during operation.
Automatic Reversing Camera Activation and Adjustable Distance Markers
When connected accordingly, the monitor can automatically display the reversing camera image as soon as reverse gear is engaged.
Adjustable distance markers can also be displayed on the screen and adapted to the installation. They provide visual guidance when manoeuvring and help the driver assess the area behind the vehicle.
The distance markers are intended as a driving aid only and do not replace direct observation of the vehicle's surroundings.
7-Inch LCD Display with Automatic Brightness Adjustment
The 7-inch colour display (17.8 cm screen diagonal) features a resolution of 800 × 480 pixels and LED backlighting. With a brightness of approximately 400 cd/m², it provides a clear image under varying lighting conditions.
The screen brightness adjusts automatically to the ambient light. Brightness, contrast and colour settings can also be adjusted via the settings menu.
The adjustable image mirroring function enables a rear-view mirror-style display. The monitor supports PAL and NTSC video standards with automatic switching.
Operation via Touch-Sensitive Buttons and Remote Control
The PerfectView M 70IP features touch-sensitive buttons for direct operation on the monitor. Alternatively, it can be operated using the included infrared remote control.
An integrated speaker allows audio signals from a compatible camera to be reproduced. Its rugged construction and vibration resistance of 6 g support use in professional vehicle applications.
Scope of Delivery
- Dometic PerfectView M 70IP LCD monitor
- Monitor bracket
- Sun visor
- Infrared remote control
- Connection cable
- Mounting hardware
Note: Cameras are not included in the scope of delivery. Please check the compatibility of existing cameras and connection cables before purchasing.
